Economic PE Protective Film Coating Machine | Compact Floor-Standing Entry-Level Production Equipment

Want to enter the PE protective film industry but have a limited budget? Is your workshop too small for a large production line? Worried that complex machinery will be too hard for your workers to operate? The Economic PE Protective Film Coating Machine is designed exactly for customers like you — a cost-effective coating system built for small-to-medium protective film processors and start-up manufacturers. Featuring a floor-standing single-deck structure with a blue square-tube frame, the machine is compact, requires minimal floor space, needs no elevated platform, and has low ceiling-height requirements. Simple to operate, easy to maintain, and low in upfront investment — it is the high-value choice for getting into PE protective film production on a budget.

Why Choose This Machine: Five Core Advantages

Every design decision revolves around three principles: low investment, fast startup, and stable operation — making sure every dollar of your budget is well spent:

• Low investment threshold, short payback period: Economic configuration with a purchase cost far below large high-config production lines. Ideal for start-up factories and small-to-medium producers to enter the market quickly — no need to take on heavy equipment loans.
• Compact design, fits in small workshops: Floor-standing single-deck structure requires no elevated platform, minimizing ceiling height and floor space needs. Installation is flexible and relocation is easy — no need to rent a large warehouse just for the machine.
• Simple operation, any worker can learn it: Intuitive control system with a push-button operation panel. Ordinary operators can run the machine independently after short training — no need to hire expensive senior technicians, labor costs stay low.
• Reliable & low-maintenance: Core components use industry-standard configurations for stable operation. Parts are universally available and affordable, after-sales maintenance costs are low, and troubleshooting is simple — minor issues can be fixed in-house without waiting for a service visit.
• Standard anilox coating, meets mainstream demand: Compatible with conventional viscosity PE protective film adhesives (water-based & solvent-based). Delivers uniform coating quality that meets mid-to-entry-level protective film market requirements — more than enough for standard products.

Technical Specifications: The Hard Data

Note: The following are typical configuration parameters for economic models. Specific width, speed, roll diameter, and other parameters can be customized to your actual requirements. Final parameters are subject to the technical agreement in the contract.

Compare these parameters directly with your production requirements to assess compatibility:

Six Functional Units Breakdown: Simple Structure, But Every Component Is Reliable

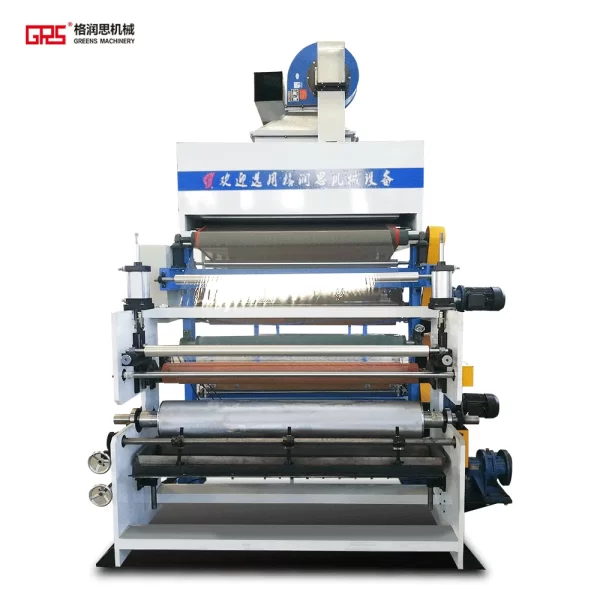

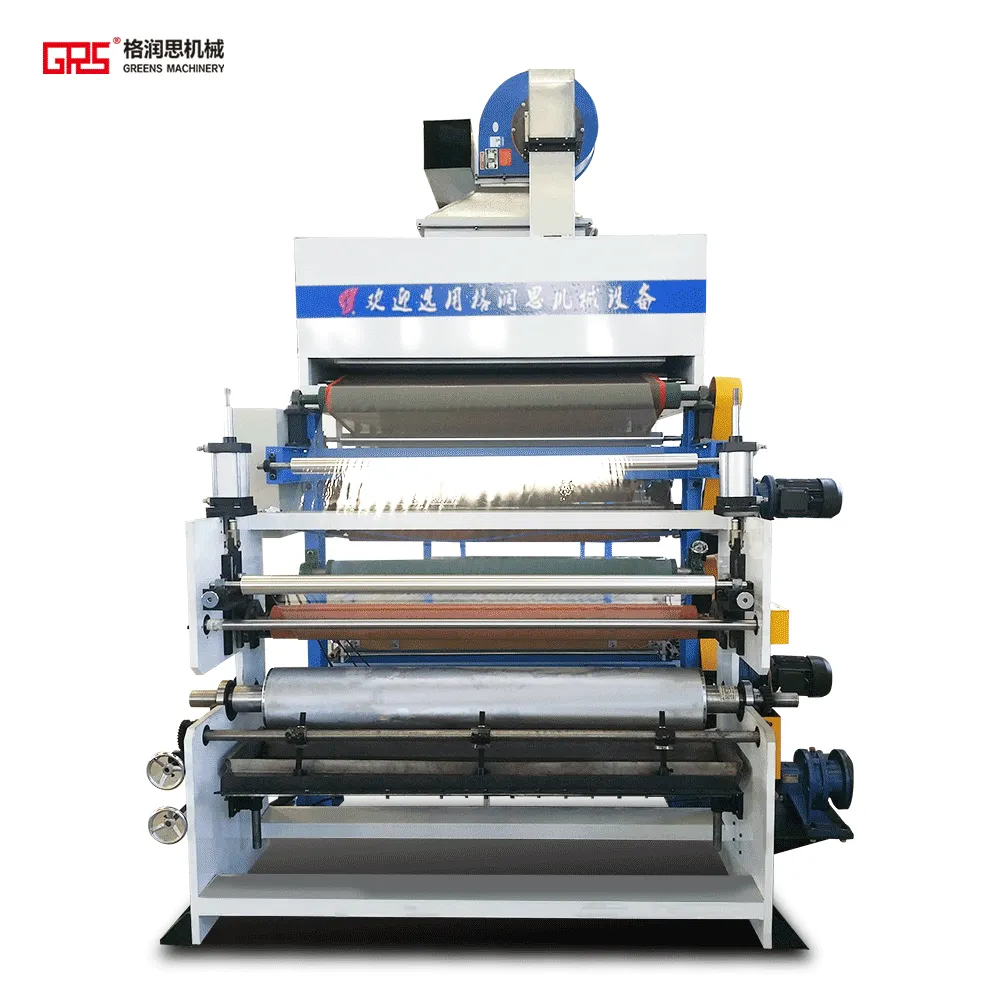

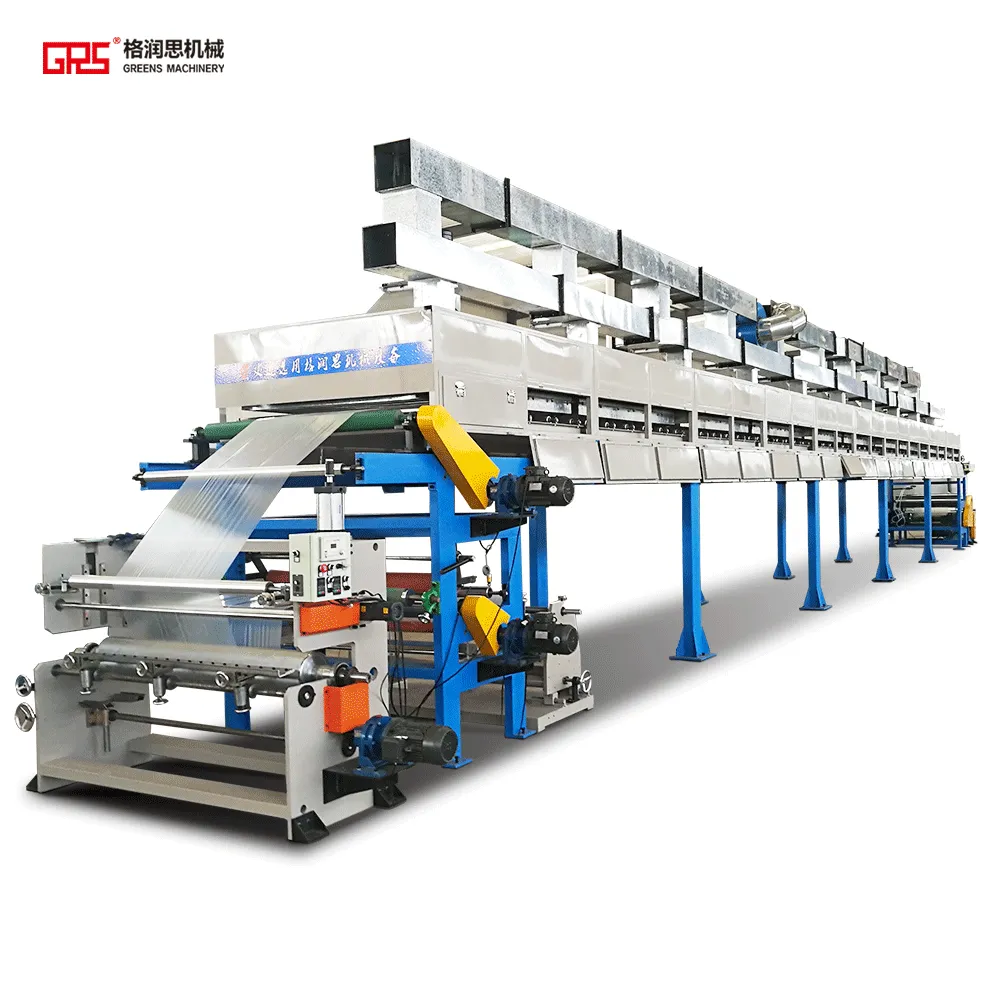

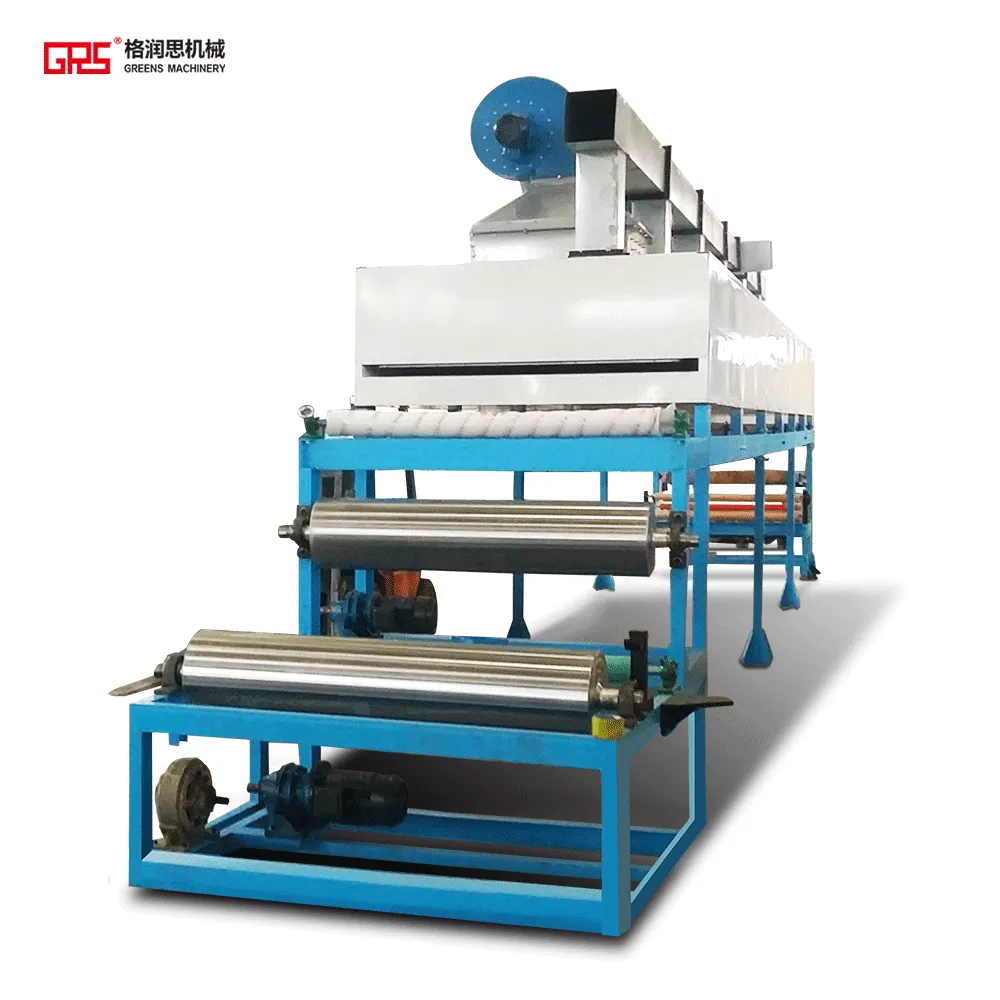

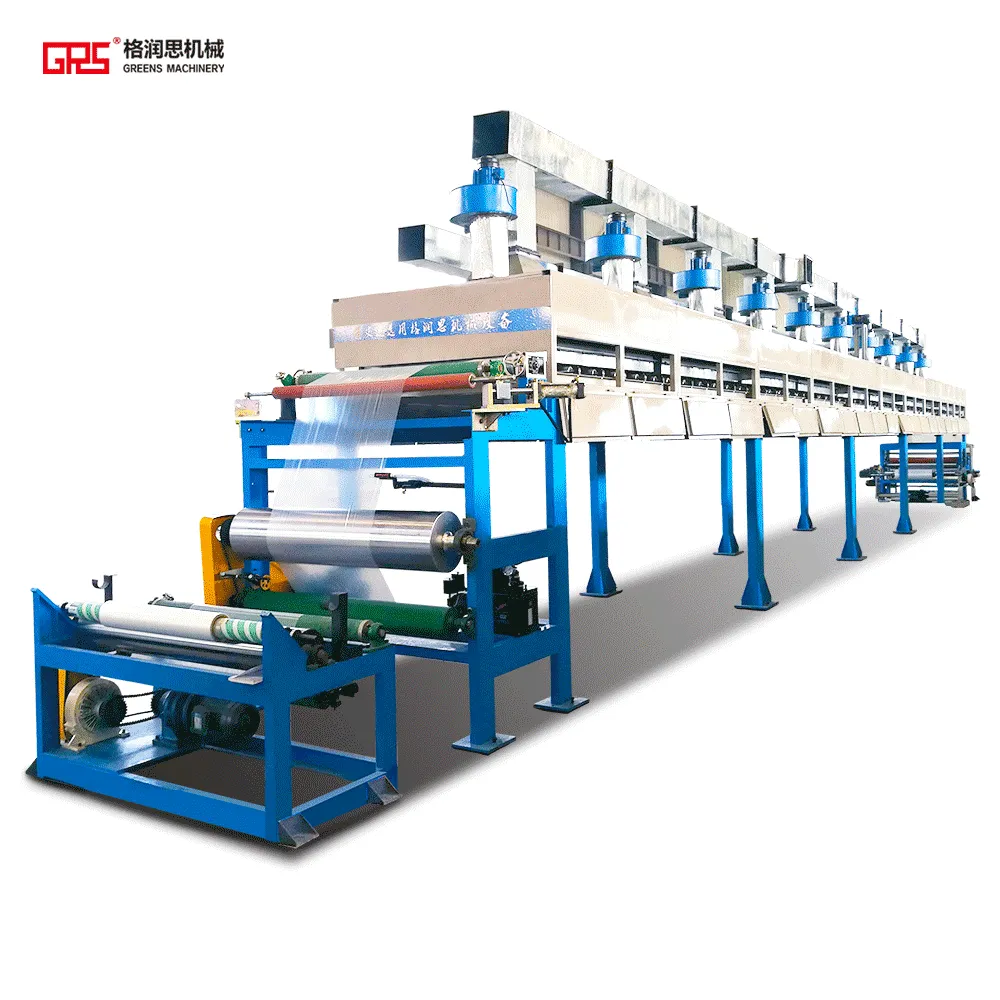

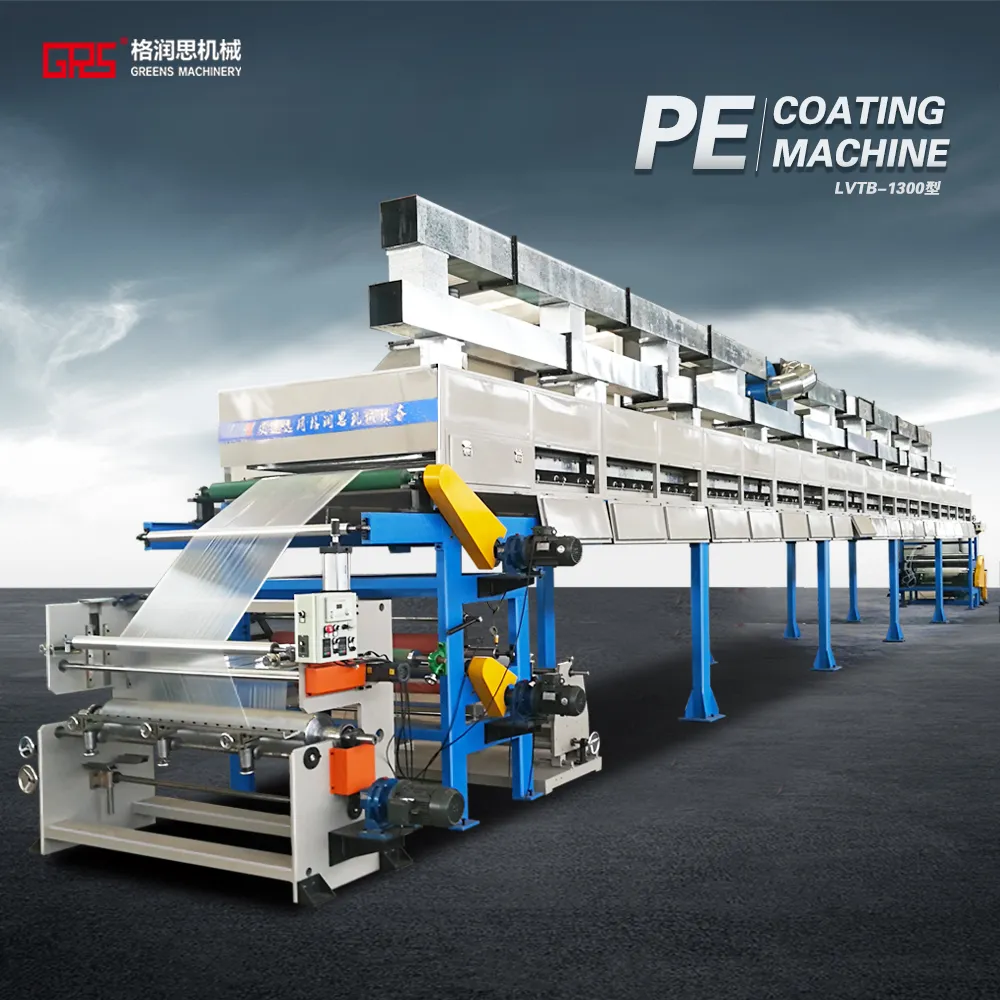

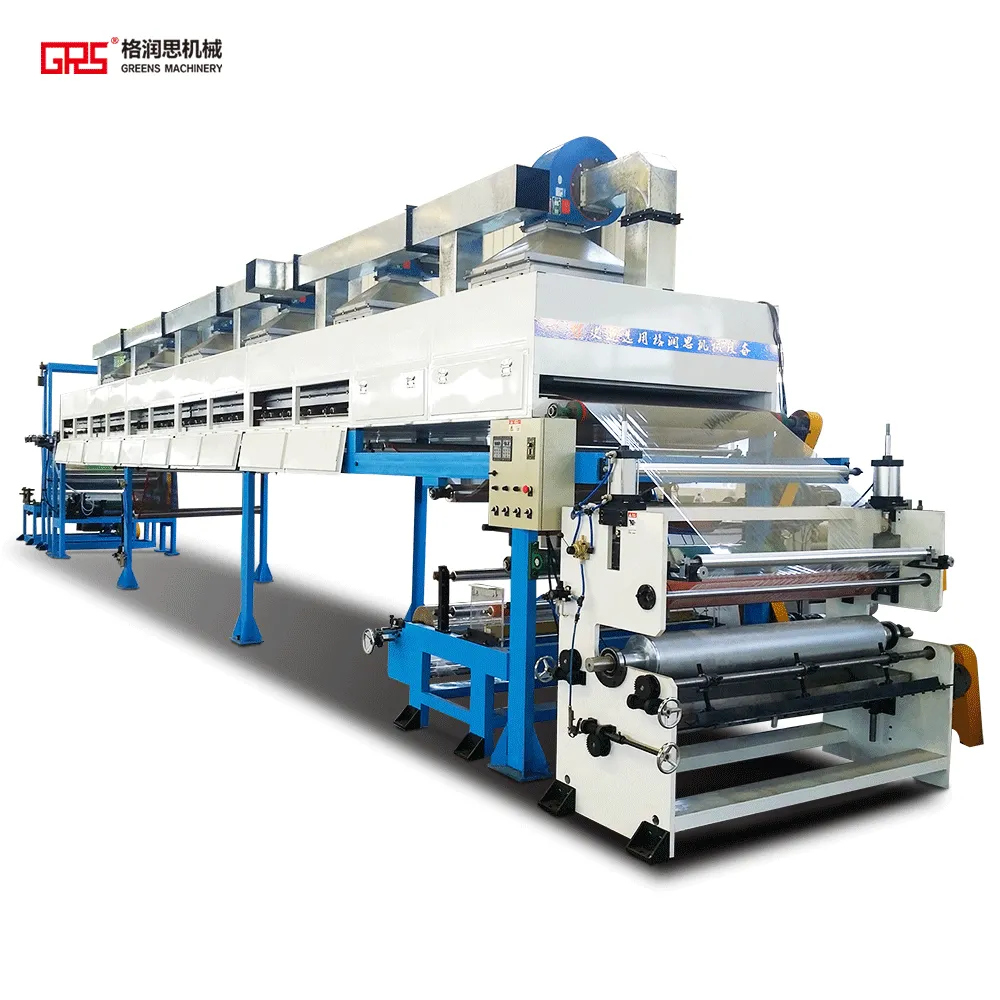

The machine is built on a floor-standing square-tube frame with blue powder coating for durability. From unwind to rewind in one continuous flow, six functional units work together to meet standard PE protective film production requirements:

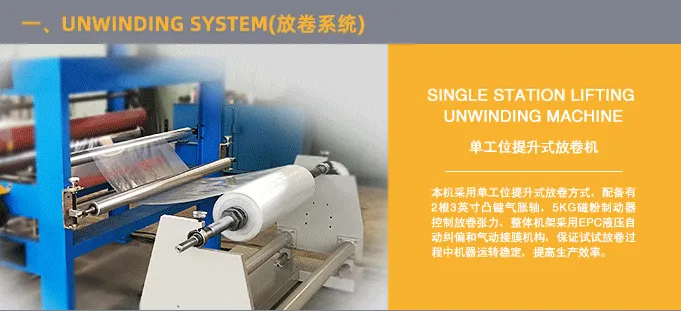

1. 1. Unwind Unit: Single-station unwind mechanism with a 3-inch air shaft. Magnetic powder brake controls unwind tension — simple and reliable, with easy roll changes that even new operators can handle quickly.

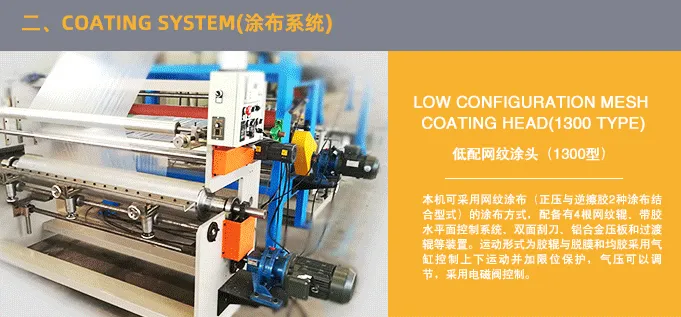

   2. Anilox Coating Unit: Standard anilox coating head compatible with conventional viscosity PE protective film adhesives (water-based & solvent-based). Equipped with anilox roller, doctor blade, and adhesive tray — uniform coating, easy operation and maintenance, and hassle-free daily cleaning.

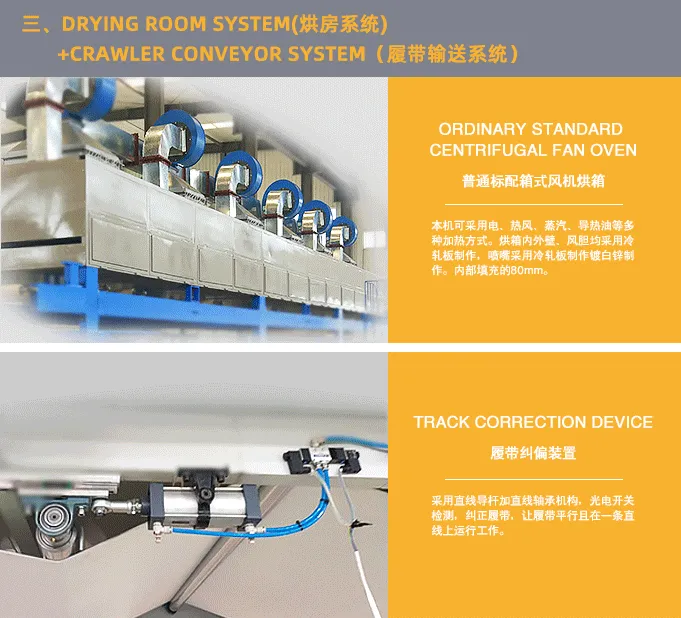

   3. Drying Oven: Electric heating oven with insulation layer and multi-zone temperature control. Meets standard PE protective film adhesive curing requirements. Oven length is matched to economic production speeds — no wasted energy, no compromise on curing performance.
      Web Guidance Unit: Photoelectric web guidance device detects the film edge position in real time and automatically adjusts the web path — ensuring neat winding, reducing scrap rates, and keeping finished mother roll edges straight and aligned.

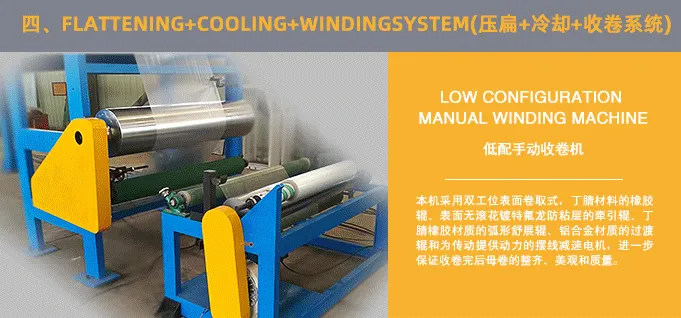

   4. Rewind Unit: Surface-type winding mechanism with a 3-inch air shaft. Delivers neat, even winding with uniform tension — finished mother rolls look clean and are ready to pack and ship directly.

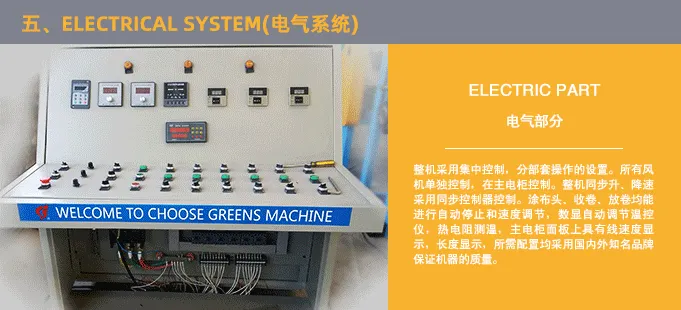

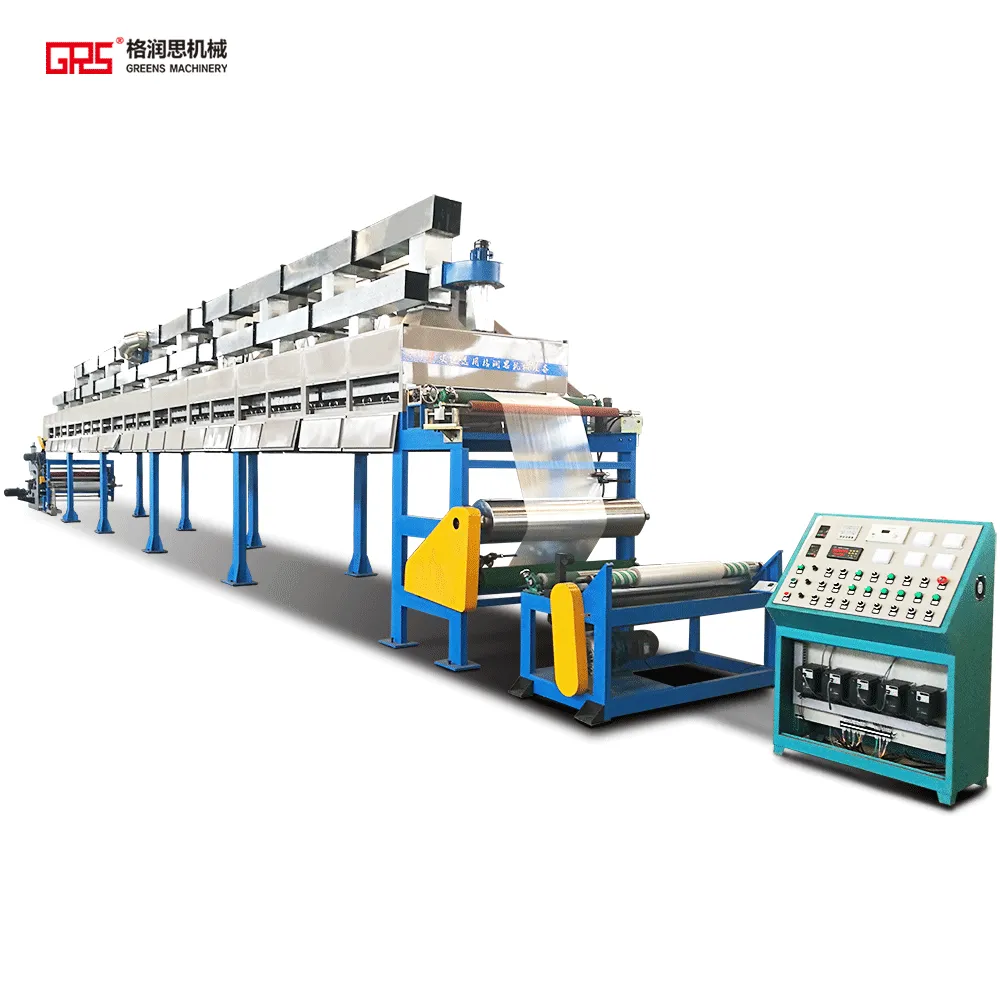

   5. Electrical Control System: Independent electrical control cabinet with centralized parameter management for temperature, speed, and tension. Push-button operation panel is intuitive and easy to understand — ordinary operators learn it after a single walkthrough, no need for expensive veteran technicians.



   Which Protective Films This Machine Produces: Find Your Match

   If your products fall into any of the following categories, this machine directly matches your production needs:

   • Standard plastic sheet & acrylic sheet surface protection films
   • Window & door profile, plastic-steel profile protection films
   • Hardware parts & metal products general surface protection
   • General packaging PE protective films & stretch film lamination
   • Glass & ceramic products transport protection films
   • Home appliance shells & consumer electronics entry-level protection films

   Common Optional Configurations (Not Standard, Consult Manufacturer for Details)

   The following are industry-common optional items, not included in the machine’s standard configuration. Specific customization options and pricing should be confirmed with the manufacturer:

   • Upgrade to EPC hydraulic automatic web guidance system
   • Add multi-zone independent temperature control modules
   • Optional compact exhaust gas treatment device
   • Upgrade to PLC touchscreen HMI
   • Custom wider width (up to 1600mm)
   • Adhesive formulation guidance & on-site commissioning service

   Contact Us Today and Start Your Protective Film Business

   If you are planning to enter the PE protective film industry, or need an additional flexible small-to-medium batch production line, this economic PE protective film coating machine helps you start production quickly and build a solid foundation — with low investment, easy operation, and a small footprint. Backed by 27 years of manufacturing experience, with machines exported to Asia, Europe, Africa, and beyond. Contact us today for detailed specifications and pricing — we provide full technical support from model selection to commissioning, making sure every dollar of your investment counts.
